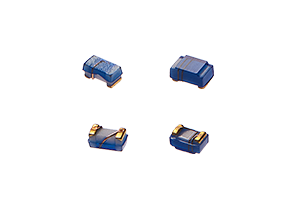

高频线绕陶瓷电感
WWCIHC(一般)
FEATURES
?Wire wounded with high Q and high SRF
?More stable due to ceramic design
?Small size and small tolerance available
?Operating temperature:-40°C to +125°C
APPLICATION
?HF application
FEATURES
?Wire wounded with high Q and high SRF
?More stable due to ceramic design
?Small size and small tolerance available
?Operating temperature:-40°C to +125°C
APPLICATION
?HF application
| 产品图 | 系列号 | 尺寸(mm) | 电感值(nH) | 直流电阻(Ω) | 温升电流(mA) | 自谐振频率(GHz) | 文件下载 |
 | WWCIHC0402 | 1.1*0.6*0.6 | 1.0~51.0 | 0.03~0.7 | 360~2300 | 2.3~16.0 |  |
 | WWCIHC0603 | 1.7*1.1*0.9 | 1.5~390 | 0.033~4.77 | 170~2100 | 0.88~16 | |
