首 页 > 电源线共模 > > CMC(一般用)

电源线共模

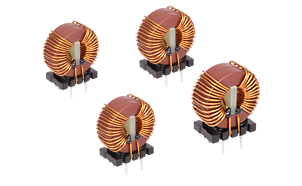

CMC(一般用)

FEATURES

?Two sets of coils with the same number of turns are wound on the same magnet to suppress common-mode noise

?The compact and uniform winding process is adopted to effectively reduce the parasitic capacitance and improve the voltage resistance level between lines

?Nominal rated voltage 250Vac; Line-to-line insulation test voltage 1500Vac

?Operating temperature: -55 °C  to +125 °C


APPLICATION

?Power Line Input and Output Common Mode Noise Reduction and Surge Suppression (250Vac)

?Surge suppression and EMI filtering for power supply units

?Filtering of the floating device

?For EMI countermeasures

?AC/DC conversion, DC/AC inverter and other lines

CMC
产品清单
产品图系列号尺寸(mm)

电感值(μH)

温升电流(A)直流电阻(mΩ)文件下载

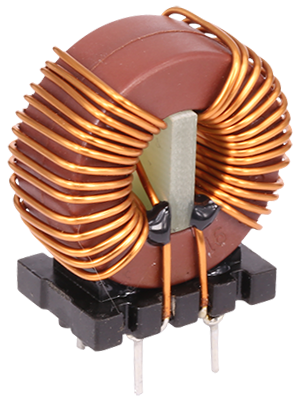

1676255422216733.pngCMC1678
16.0*7.8*18.014~390000.3~4.015~3000下载
1676255422216733.pngCMC191519.0*15.0*22.016~200000.5~10.0
2.7~540
下载
1676255422216733.pngCMC2517
25.0*17.0*27.0
1000~200001.5~6.013~270
下载
1676255422216733.pngCMC2819
28.0*19.0*33.0
1000~200002.0~10.07~220
下载
1676255422216733.pngCMC3122
31.0*22.0*35.0
1000~330003.0~12.09~210
下载
1676255422216733.pngCMC4724
47.0*24.0*43.5
500~180014.0~35.02.3~9.5
下载
