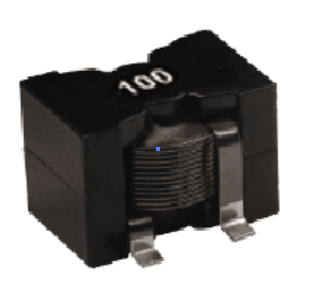

扁平线大电流电感
THC(一般用)
FEATURES
?High saturation current up to 100A
?Low losses with flat wire design
?Low core losses with Mnzn core material
APPLICATION
?High current DC/DC converter
?LC filter
FEATURES
?High saturation current up to 100A
?Low losses with flat wire design
?Low core losses with Mnzn core material
APPLICATION
?High current DC/DC converter
?LC filter

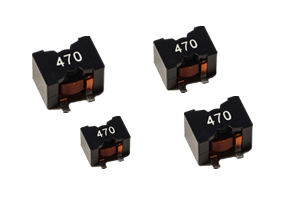

| 产品图 | 系列号 | 尺寸(mm) | 电感值(μH) | 温升电流(A) | 饱和电流(A) | 直流电阻(mΩ) | 文件下载 |
 | THC2012 | 22.5*21.8*12.0 | 0.47~33.0 | 14.0~45.0 | 7.0~75.0 | 0.45~8.17 |  |
| THC2015 | 22.5*21.8*14.5 | 2.2~47.0 | 13.0~28.0 | 7.0~55.0 | 1.7~12.3 | |
| THC2017 | 22.5*21.8*16.5 | 4.7~47.0 | 12.0~21.0 | 6.5~42.0 | 3.3~13.0 | |
| THC2815 | 27.9*27.9*15.4 | 1.5~33.0 | 30 | 2.6~100 | 1.6 | |
| THC2818 | 27.9*27.9*17.8 | 1.0~33.0 | 28.0~60.0 | 8.7~120 | 0.5~2.6 | |
 | THCE2012 | 22.5*21.5*12.5 | 1.5~22.0 | 14.0~30.0 | 10.0~60.0 | 1.6~6.5 | |
| THCE2015 | 22.5*21.5*14.5 | 1.2~33.0 | 16.0~28.0 | 9.0~65.0 | 2.3~9.5 | |
| THCE2818 | 28.0*27.0*18.5 | 2.2~33 | 30 | 8.7~100 | 2.5 | |
