首 页 > 双绕组屏蔽型功率电感 > > SDDA(车用)

双绕组屏蔽型功率电感

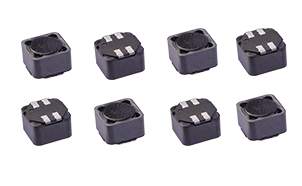

SDDA(车用)

FEATURES

?Ferrite drum core construction,Magnetically shielded

?Dual winding inductors that can be used as a single inductor, SEPIC,Flyback, or other coupled inductor/transformer

?AEC-Q200 qualified

?Moisture Sensitivity Level 1

?Operating temperature range: -55°C to +155°C


APPLICATION

?Headlamps, tail lamps and interior lighting

?HVAC

?Doors, window lift and seat control

?Audio subsystem

?Digital instrument cluster

?In-Vehicle Infotainment and navigation

SDDA
产品清单
产品图系列号尺寸(mm)

电感值(μH)

温升电流(A)

饱和电流(A)

直流电阻(Ω)文件下载

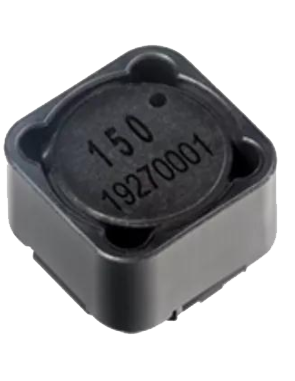

1714023219406627.pngSDDA128012.5*12.5*8.54.7~1001.5~5.03.0~12.90.025~0.28下载
2222.pngSDDA121012.5*12.5*10.53.9~33.03.1~7.06.2~17.60.018~0.075下载
