首 页 > 叠层电感 > > MIV(车用)

叠层电感

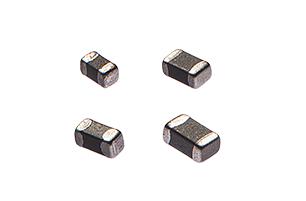

MIV(车用)

FEATURES

?Ferrite core wire wound construction

?High Reliability due to wire wound type constructionSmall footprint as well as low profile

?Lead-free reflow soldering as referenced in JEDEC J-STD 020D and RoHS compliant


APPLICATION

?Filtering of supply voltages, coupling, decoupling

?DC/Dc converters, switch-mode power supplies

?Entertainment equipment: car navigations, car audios

?Body control equipment like wipers, power windows

MIV
产品清单
产品图系列号尺寸(mm)

电感值(μH)

温升电流(mA)

直流电阻(Ω)

自谐振频率(MHz)文件下载
1676426715966336.pngMIV10051.0*0.5*0.51.0~2.210~150.9~1.728~40下载
1676426737766499.pngMIV16081.6*0.8*0.80.047~1015~500.30~2.5517~260下载
1676426787815661.pngMIV20122.0*1.25*(0.85~1.45)0.047~1015~3000.2~1.1524~320下载
1676426769800080.pngMIV32163.2*1.6*1.11.0~1025~1000.4~1.024~75下载
